Ok, I’ve tried searching for this specific info and can’t seem to find this exact info.

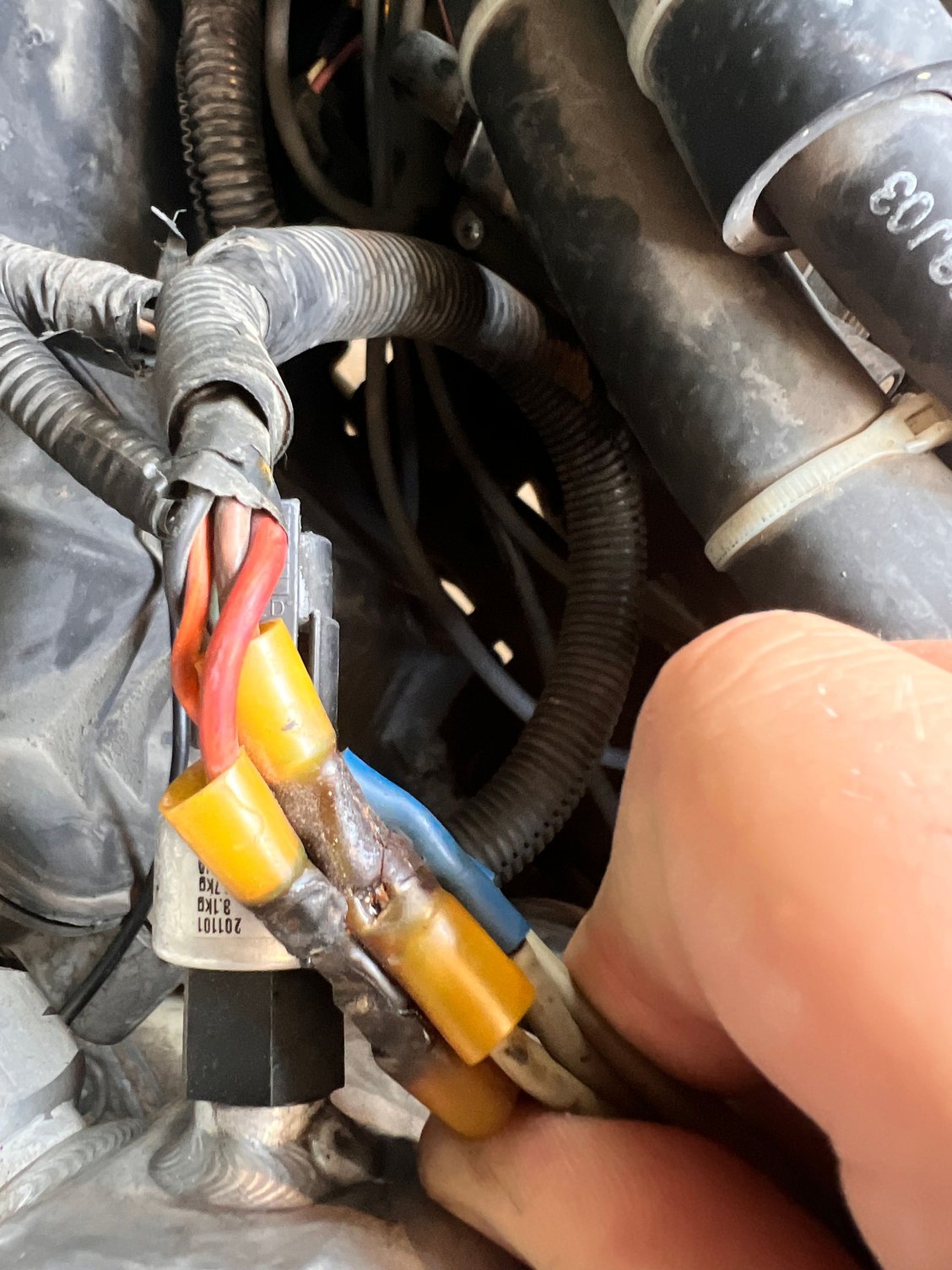

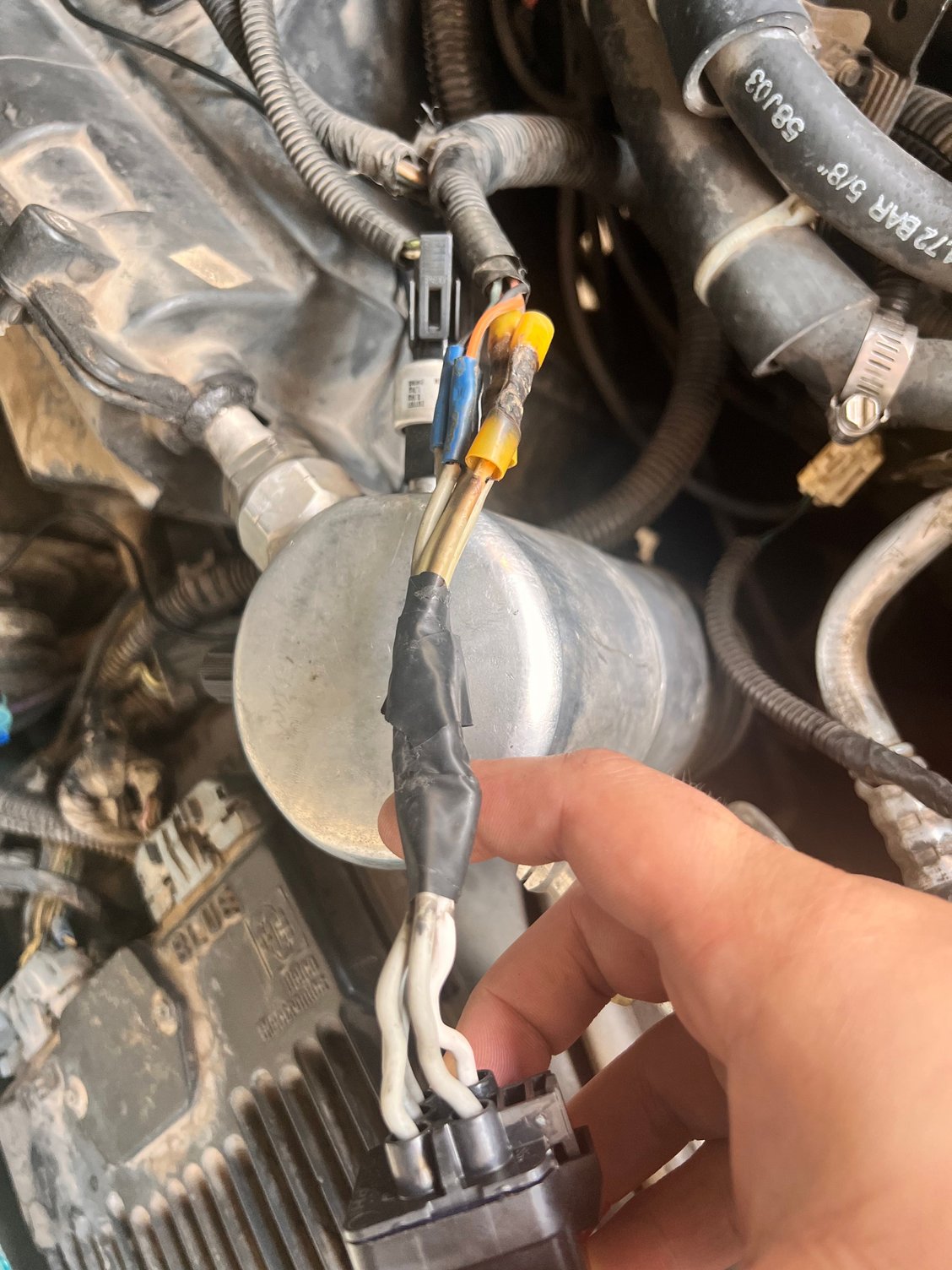

bought a 95 blazer ls, AC is not working, looks like someone has been in here before me splicing in wires for a new relay connector. But the splice points are cooked, melted and crispy.

this would be for the AC control relay, I’ve got 5 colored wires going to the 5 pin relay but I want to confirm which wires go to which pin in the relay for when I replace the connector.

I’ve got Black Blue Orange Purple and Red and relays pins labeled 87 87a 85 86 and 30

unfortunately the wires in the connector came out while I was unplugging the the relay and I wasn’t able to document which ones went where.

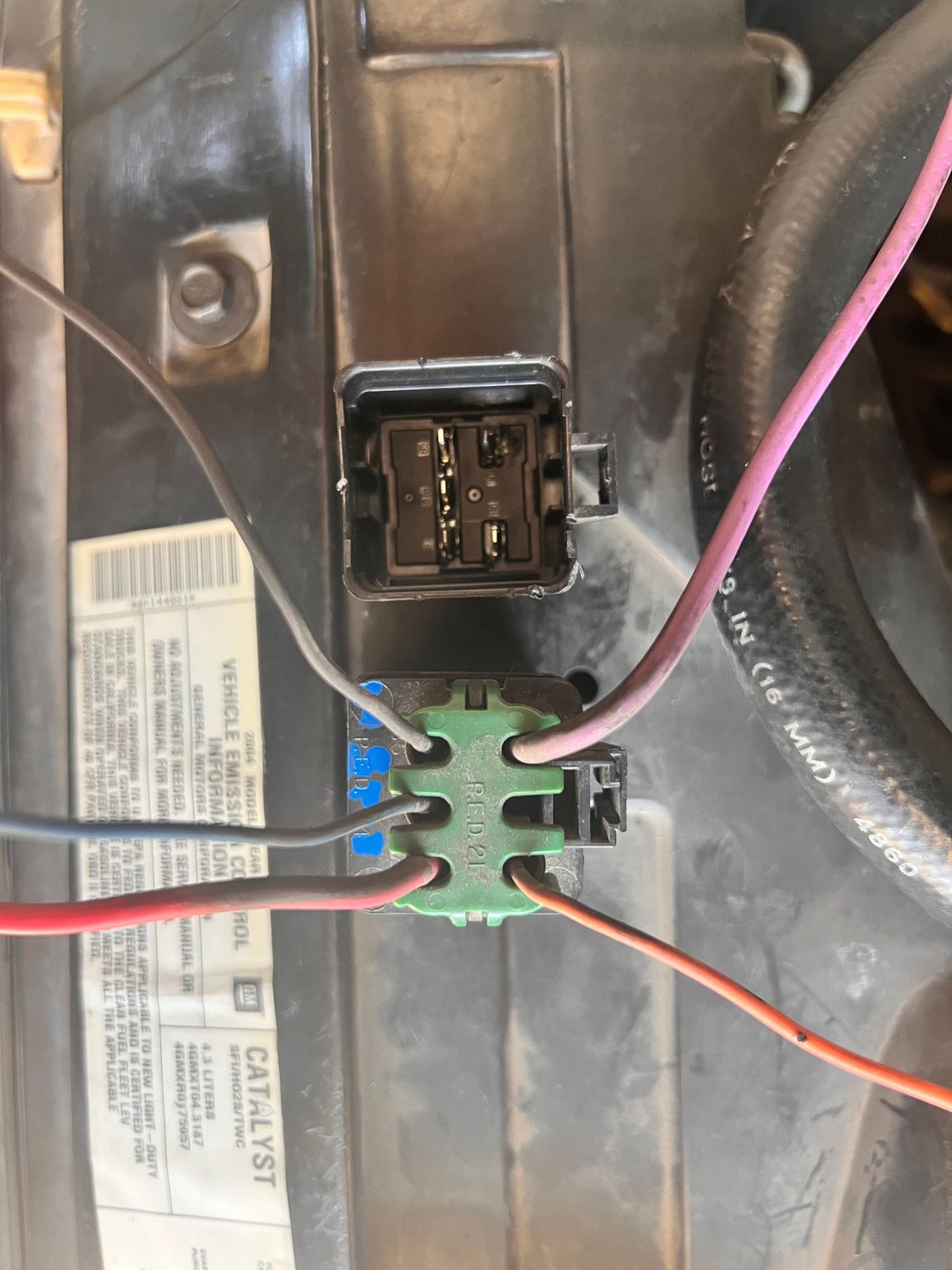

Well Ive answered my own question. For anyone else needing to know, please see the picture below.

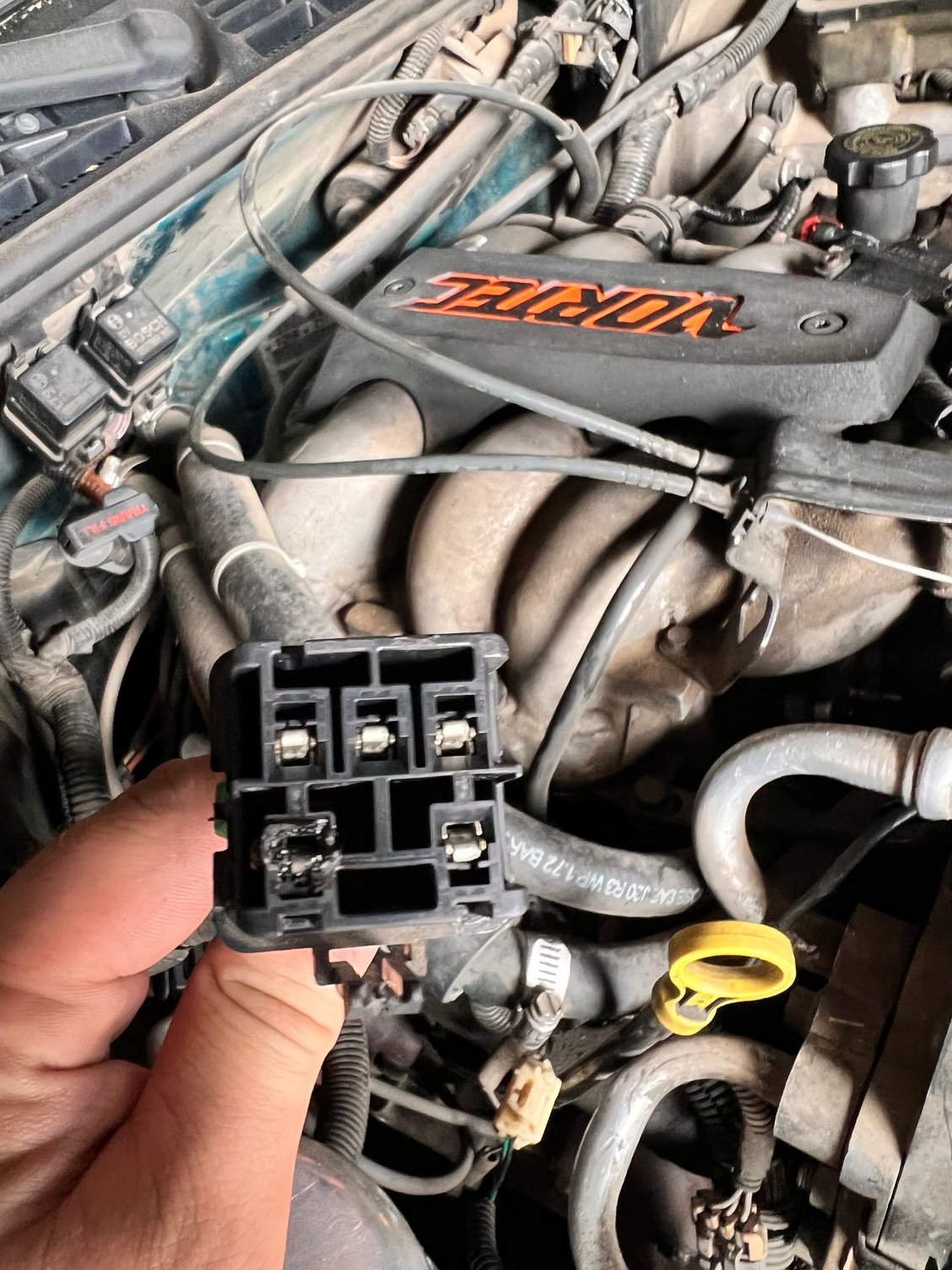

was able to find an original in the junk yard.

purple to pin 30

orange to pin 86

red to pin 87

blue to pin 87a

black to pin 85
