back when i had to get my engine rebuilt i got it back and they had soldered some wires together, but everything worked so i didnt really bother to figure it out, now im curious.

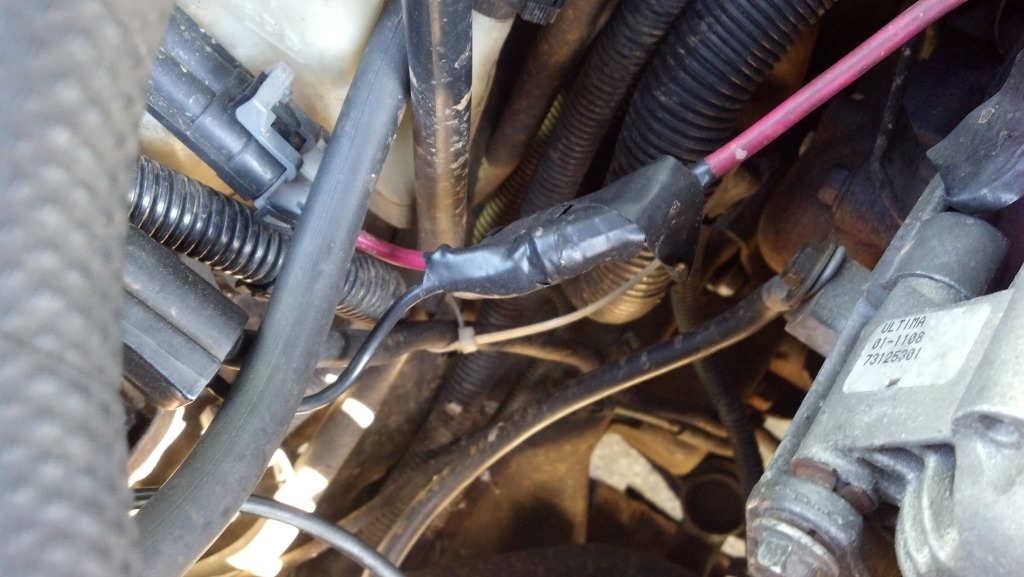

the single red wire is from the ALT, then it splits into a red and black wire. black wire goes to the + terminal on the batter, the red goes into a plug, then the other end of the plug has a red wire that goes to a cluster of wires but idk what excatly to.





Is that black wire the ONLY wire going from the alt to the batt +? If it is, you need a far larger wire for that.



im not worried about wire size being wrong, im wndering why the red wire from the alt splits into 2 wires instead of going from alt to batt.



I would think that feed the forward harness and/fuse box in dash



any other ideas?



I believe that's power for head lights



just seems odd and out of place, exspecialy with that connector
