Trailer wire harness question
#1
Trailer wire harness question
So I'm wanting to get my blazer trailer ready (98 4dr).
I looked but didn't see the right plug n play adapter for the harness to t into a quick connect at Canadian tire so I picked up a joe 4 pin to splice in. When I crawled under the back I noticed a neatly bunched up wire connected to brake harness behind bumper slightly on left side. It has a really worn out tag on I can't read and no end. I pulled it apart and found wire colours I was looking for but too meany, couple greens and browns a long with a yellow and thick white I presume to be ground.
Is this a factory wire there for factory option trailer lights?
Does anybody know the colour code back there (witch ones I need for 4pin) or is it better to wire in a seven and use an adapter ?
A pic of wires
To clarify the front of the truck is on the left, rust is bottom of bumper and I'm looking up at it
I looked but didn't see the right plug n play adapter for the harness to t into a quick connect at Canadian tire so I picked up a joe 4 pin to splice in. When I crawled under the back I noticed a neatly bunched up wire connected to brake harness behind bumper slightly on left side. It has a really worn out tag on I can't read and no end. I pulled it apart and found wire colours I was looking for but too meany, couple greens and browns a long with a yellow and thick white I presume to be ground.
Is this a factory wire there for factory option trailer lights?
Does anybody know the colour code back there (witch ones I need for 4pin) or is it better to wire in a seven and use an adapter ?
A pic of wires
To clarify the front of the truck is on the left, rust is bottom of bumper and I'm looking up at it
Last edited by Neb15; 06-03-2013 at 06:25 PM.
#2
brown -- tail lights
green - right and brake
yellow - left and brake
White -- ground
I would check them with a test light JIK
I prefer to take the white from the trailer plug and screw it right to the frame for a good ground
I dont believe there is a Blazer plug and play set , no plugs
green - right and brake
yellow - left and brake
White -- ground
I would check them with a test light JIK
I prefer to take the white from the trailer plug and screw it right to the frame for a good ground
I dont believe there is a Blazer plug and play set , no plugs
#5
true....but not for trailers. white is the ground wire. i just re-did mine today and the white wire is the largest wire in the whole thing. (i have the 8 wire harness) i dont know why they have done that, but its been that way for along time.
#6
So I'm wanting to get my blazer trailer ready (98 4dr).
I looked but didn't see the right plug n play adapter for the harness to t into a quick connect at Canadian tire so I picked up a joe 4 pin to splice in. When I crawled under the back I noticed a neatly bunched up wire connected to brake harness behind bumper slightly on left side. It has a really worn out tag on I can't read and no end. I pulled it apart and found wire colours I was looking for but too meany, couple greens and browns a long with a yellow and thick white I presume to be ground.
Is this a factory wire there for factory option trailer lights?
Does anybody know the colour code back there (witch ones I need for 4pin) or is it better to wire in a seven and use an adapter ?
I looked but didn't see the right plug n play adapter for the harness to t into a quick connect at Canadian tire so I picked up a joe 4 pin to splice in. When I crawled under the back I noticed a neatly bunched up wire connected to brake harness behind bumper slightly on left side. It has a really worn out tag on I can't read and no end. I pulled it apart and found wire colours I was looking for but too meany, couple greens and browns a long with a yellow and thick white I presume to be ground.
Is this a factory wire there for factory option trailer lights?
Does anybody know the colour code back there (witch ones I need for 4pin) or is it better to wire in a seven and use an adapter ?
#7
That is odd! I guess I never payed attention. I have a 4 pin harness on mine which I used to hook up my light up GMC trailer hitch cover since I do not pull anything. berry strange!
#8

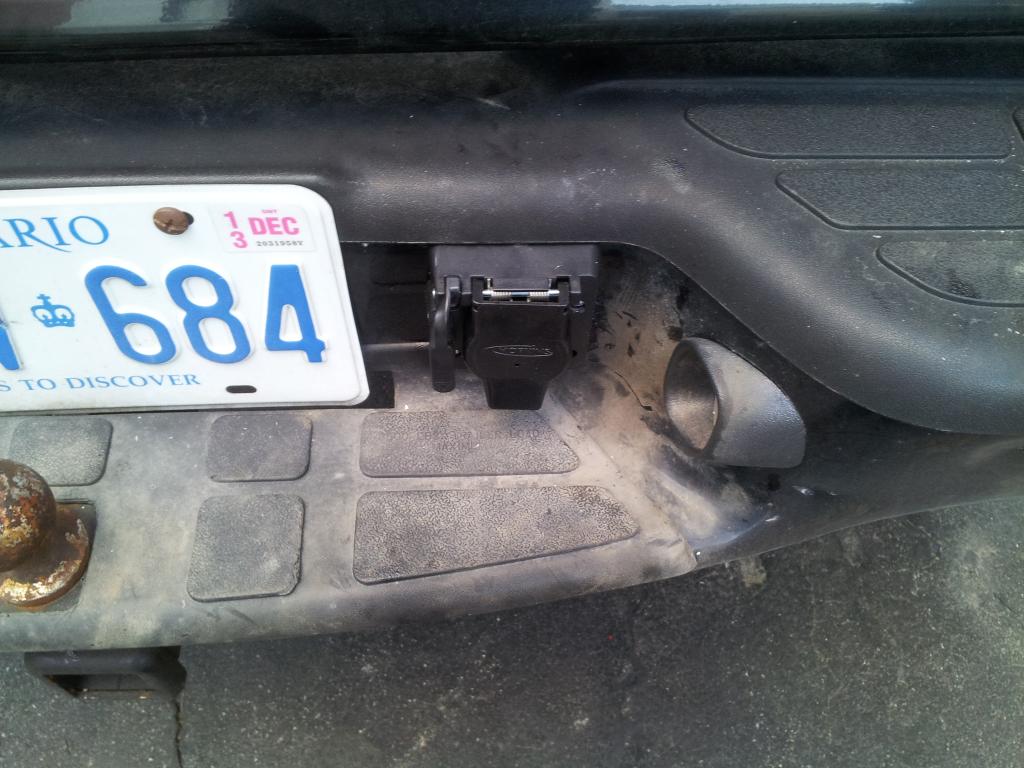

sweet. well the four wires work perfect. just twisted them up cuz im moving and idk where my solder and such are now. Later on im going to wire in a mounted 7 and unit like this
http://s7d5.scene7.com/is/image/CanadianTire/0408232_1?$medium$&defaultImage=image_na_EN
From what i can tell there is a wire not there, maybe pulling apart the harness more ill find it. In addition to the yellow, white, green, and brown, I have a light blue and light green. what else am i missing if i need to tap it somewhere else?
http://s7d5.scene7.com/is/image/CanadianTire/0408232_1?$medium$&defaultImage=image_na_EN
From what i can tell there is a wire not there, maybe pulling apart the harness more ill find it. In addition to the yellow, white, green, and brown, I have a light blue and light green. what else am i missing if i need to tap it somewhere else?
