Default Possible leaking wheel cylinder??

I hope this isn't the wrong section, first post.

My question to all out there, who have had a similar issue, give me some clues or instructions to diagnose this problem or what it may be.
There is this weird leak on the bottom half of my rear dust cover.
it appears to be coming from where the rubber gasket is around where the emergency brake clips to.
A mechanic told me it's an axle leak, but the fluid is very dark and doesn't smell like anything at all, and I definitely know what diff fluid smells like lol.
I think I lost some brake fluid from my reservoir, i'll keep an eye on it, but I took some pictures :

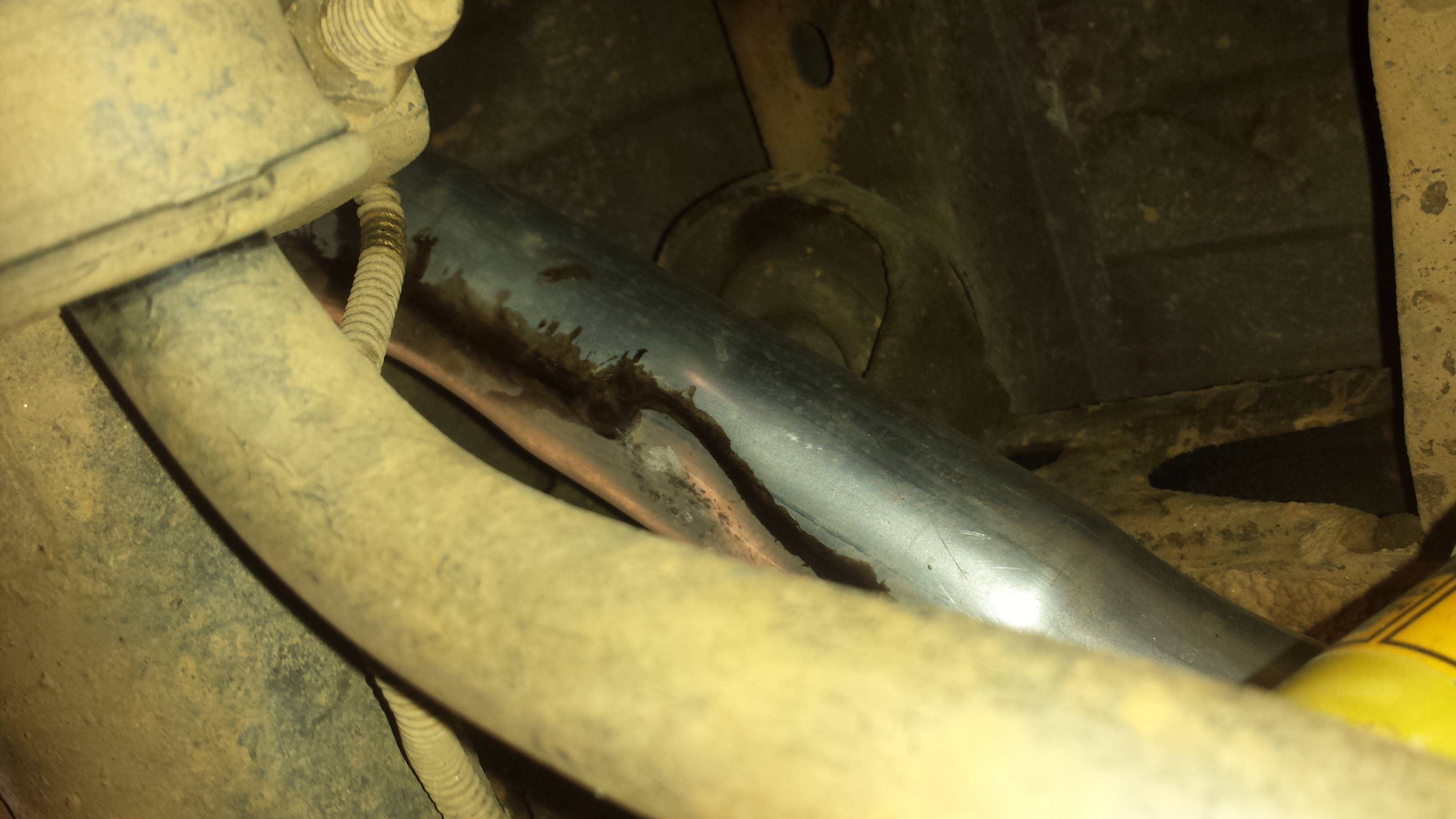

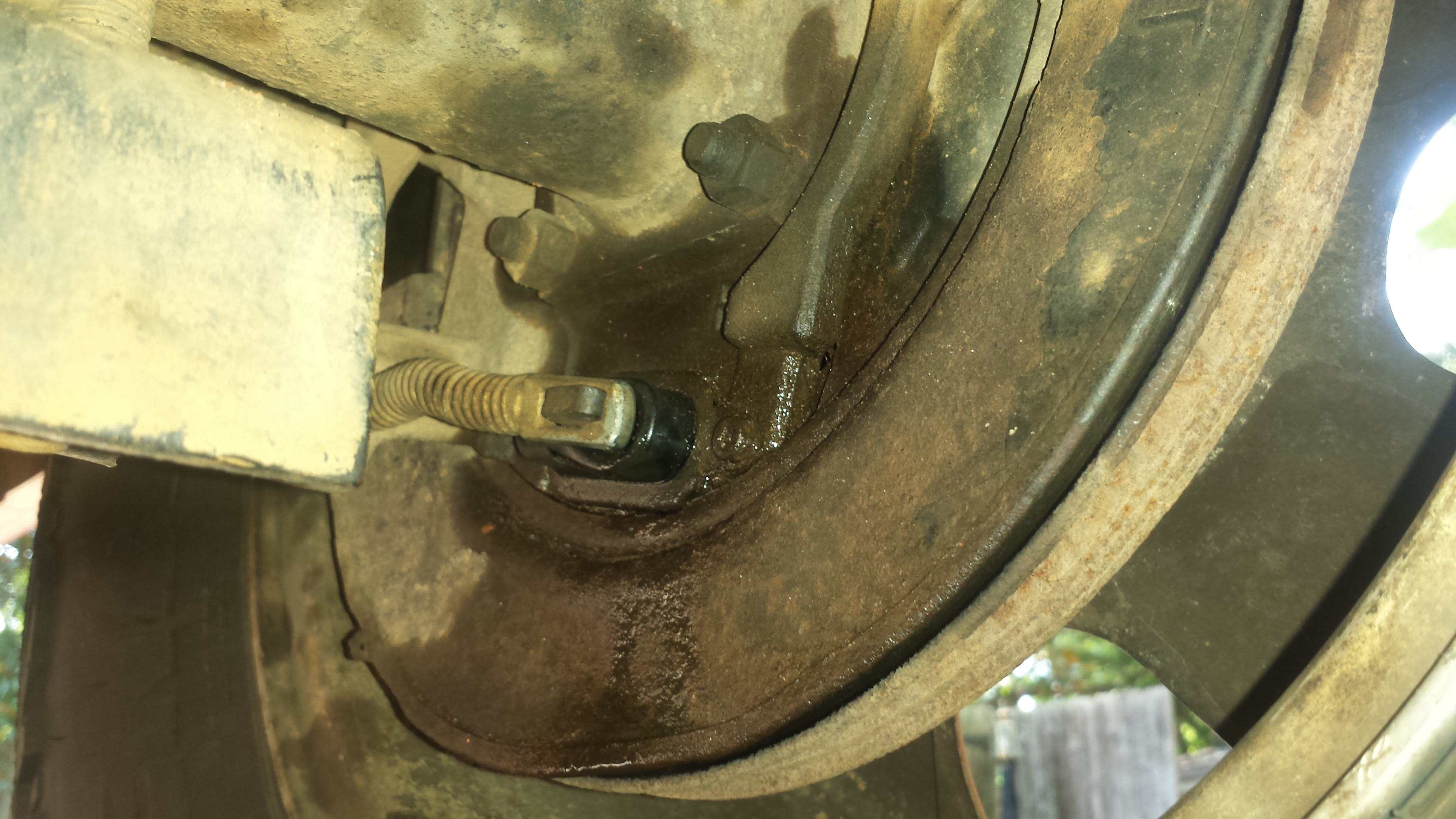

Attached Thumbnails Possible leaking wheel cylinder??-20150725_160107.jpg   Possible leaking wheel cylinder??-20150725_160251.jpg   Possible leaking wheel cylinder??-20150725_160149.jpg
  #2
Old 07-26-2015, 05:43 PM
Captain Hook's Avatar
Moderator
Join Date: Mar 2009
Location: Belleville, Michigan
Posts: 8,453
Captain Hook is a jewel in the roughCaptain Hook is a jewel in the roughCaptain Hook is a jewel in the rough
Default

Those are disc brakes, there are no wheel cylinders in there. The rear axle seal is leaking. The caliper, caliper bracket, and rotor must be removed. The differential cover must be removed, axle retainer removed, and the axles pulled out to replace the seal(s).

  #3
Old 07-26-2015, 06:14 PM
Blazin It Down's Avatar
New Member
Thread Starter
Join Date: May 2015
Posts: 3
Blazin It Down is on a distinguished road
Default

Originally Posted by Captain Hook
Those are disc brakes, there are no wheel cylinders in there. The rear axle seal is leaking. The caliper, caliper bracket, and rotor must be removed. The differential cover must be removed, axle retainer removed, and the axles pulled out to replace the seal(s).

Thank you! The front was easy but this will be my first rear seal, is there anything to look out for while removing the axle shaft?

  #4
Old 07-26-2015, 07:14 PM
Captain Hook's Avatar
Moderator
Join Date: Mar 2009
Location: Belleville, Michigan
Posts: 8,453
Captain Hook is a jewel in the roughCaptain Hook is a jewel in the roughCaptain Hook is a jewel in the rough
Default

Youtube has some helpful videos. After removing the axle retainer bolt and pin, slide the axle inboard slightly to remove the "C" clip from the end of the axle shaft, (magnet works great) then pull the axle straight out being careful not to rotate the differential carrier, or bump the axle on the housing when removing it. When the axle is nearly out, catch the edge of the seal with the end of the axle, and pry the seal out, piece of cake.

  #5
Old 07-26-2015, 07:47 PM
Blazin It Down's Avatar
New Member
Thread Starter
Join Date: May 2015
Posts: 3
Blazin It Down is on a distinguished road
Default

Very helpful , thank you! Tomorrows my day off so here goes nothing!

  #6
Old 07-29-2015, 01:09 PM
abig84's Avatar
BF Veteran
Join Date: Aug 2009
Location: munster indiana
Posts: 3,424
abig84 will become famous soon enoughabig84 will become famous soon enough
Default

Originally Posted by Captain Hook
to replace the seal(s).
replace the other side too while youre in there. no point in doing one and having the other one leak a few weeks later and have to tear it all apart again
