Lift Gate wiring

Thread Tools

Search this Thread

Old Jun 12, 2016 | 01:09 AM
  #1
yuuzhan's Avatar
Thread Starter
|
New Member
Joined: Jun 2016
Posts: 2
yuuzhan is on a distinguished road
Default Lift Gate wiring

So I just picked up a 98 s10 Blazer. 4dr. It had been in a rear end and had destroyed the lift gate. I got a new one from a salvage yard in great cond and low and behold, its I believe from a 97 and has a much larger plug on each side, in addition to one less wire. Does anyone have a schematic to convert? I need to splice my 97 hatch onto my 98 blazer I guess as I dont see any conversion plugs. Any help is appreciated. I enclosed two pictures of each side starting on the left.


Last edited by yuuzhan; Jun 14, 2016 at 01:02 AM.
Old Jun 14, 2016 | 01:16 AM
  #2
yuuzhan's Avatar
Thread Starter
|
New Member
Joined: Jun 2016
Posts: 2
yuuzhan is on a distinguished road
Default pictures

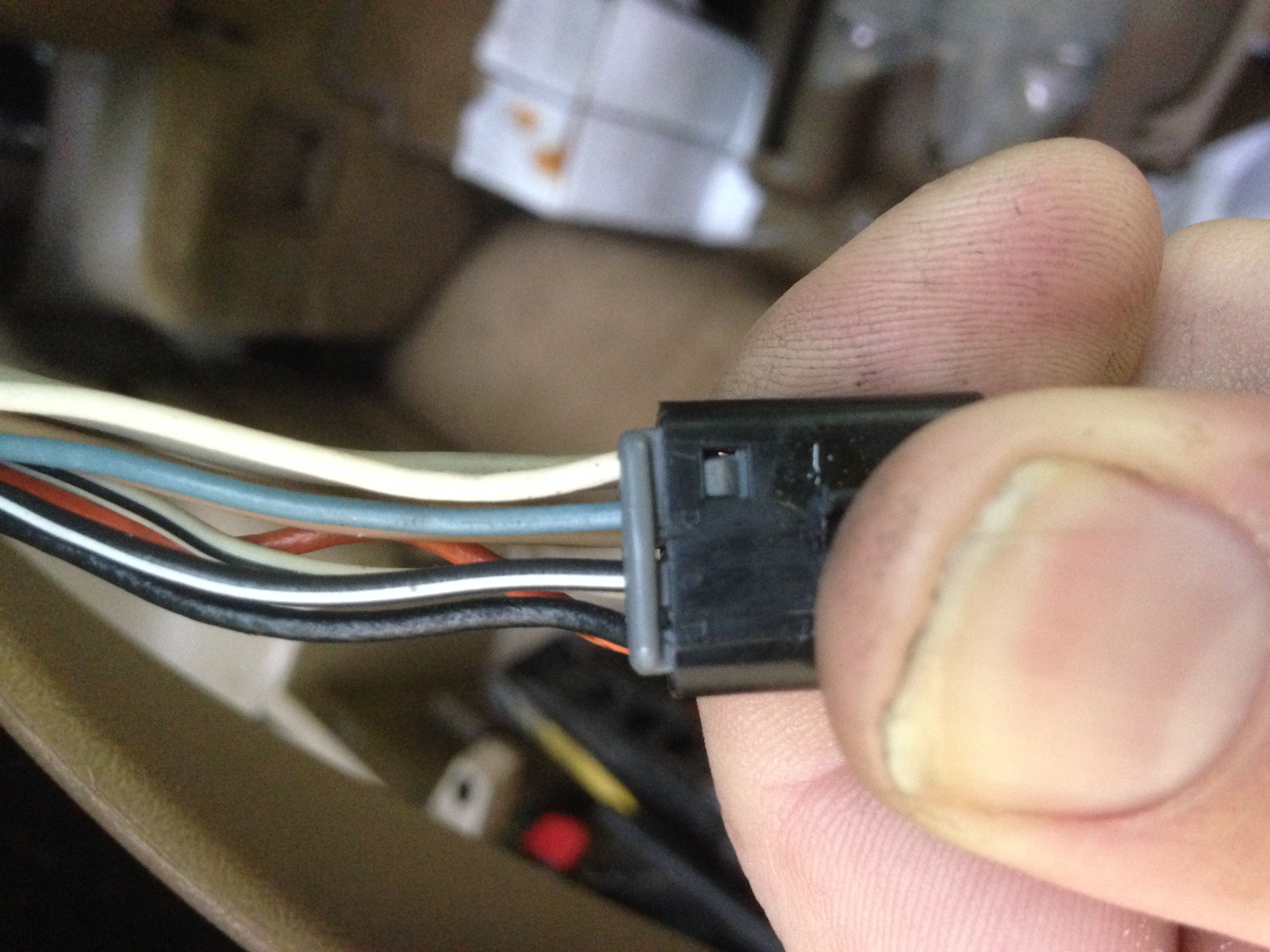

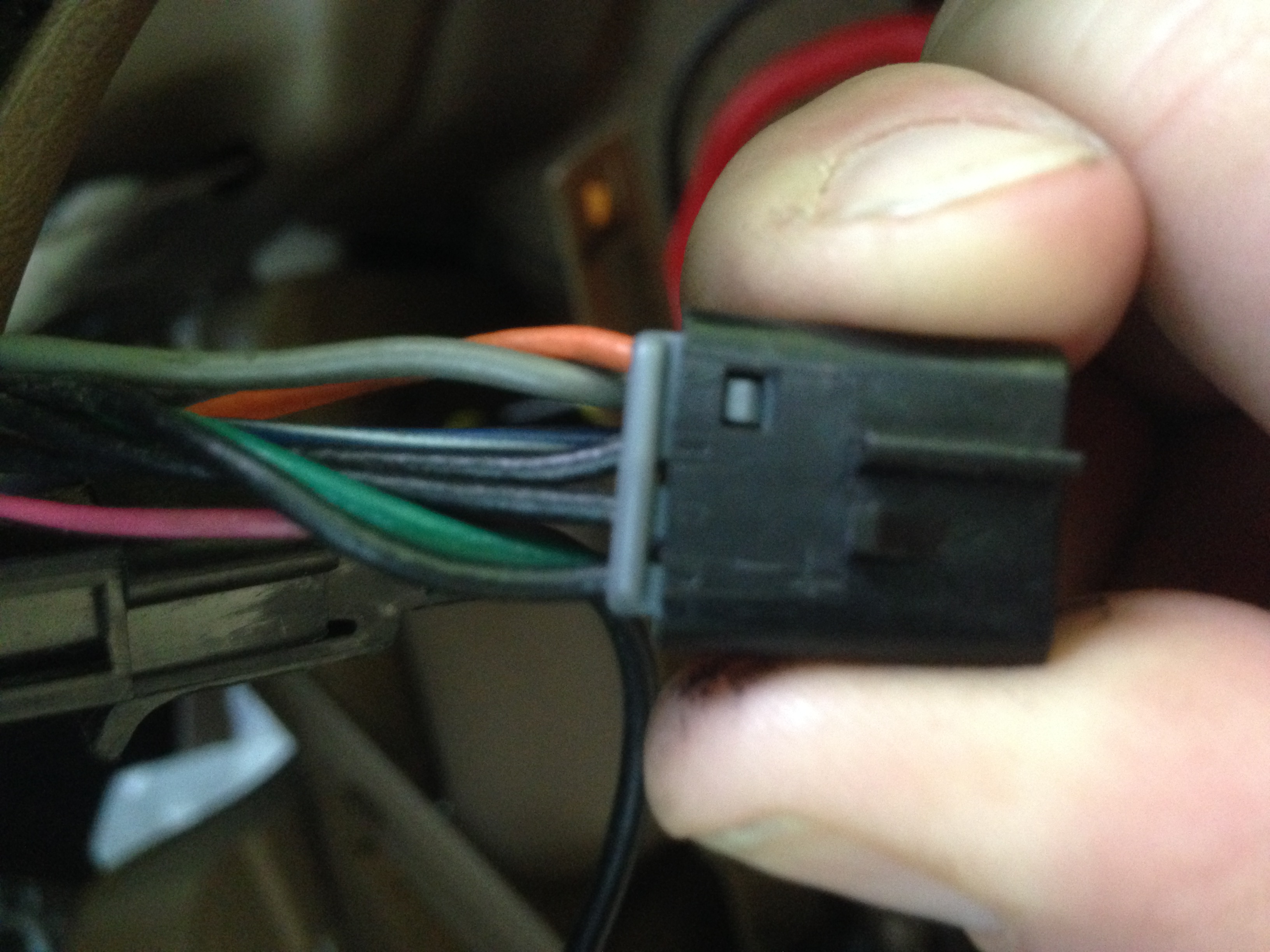

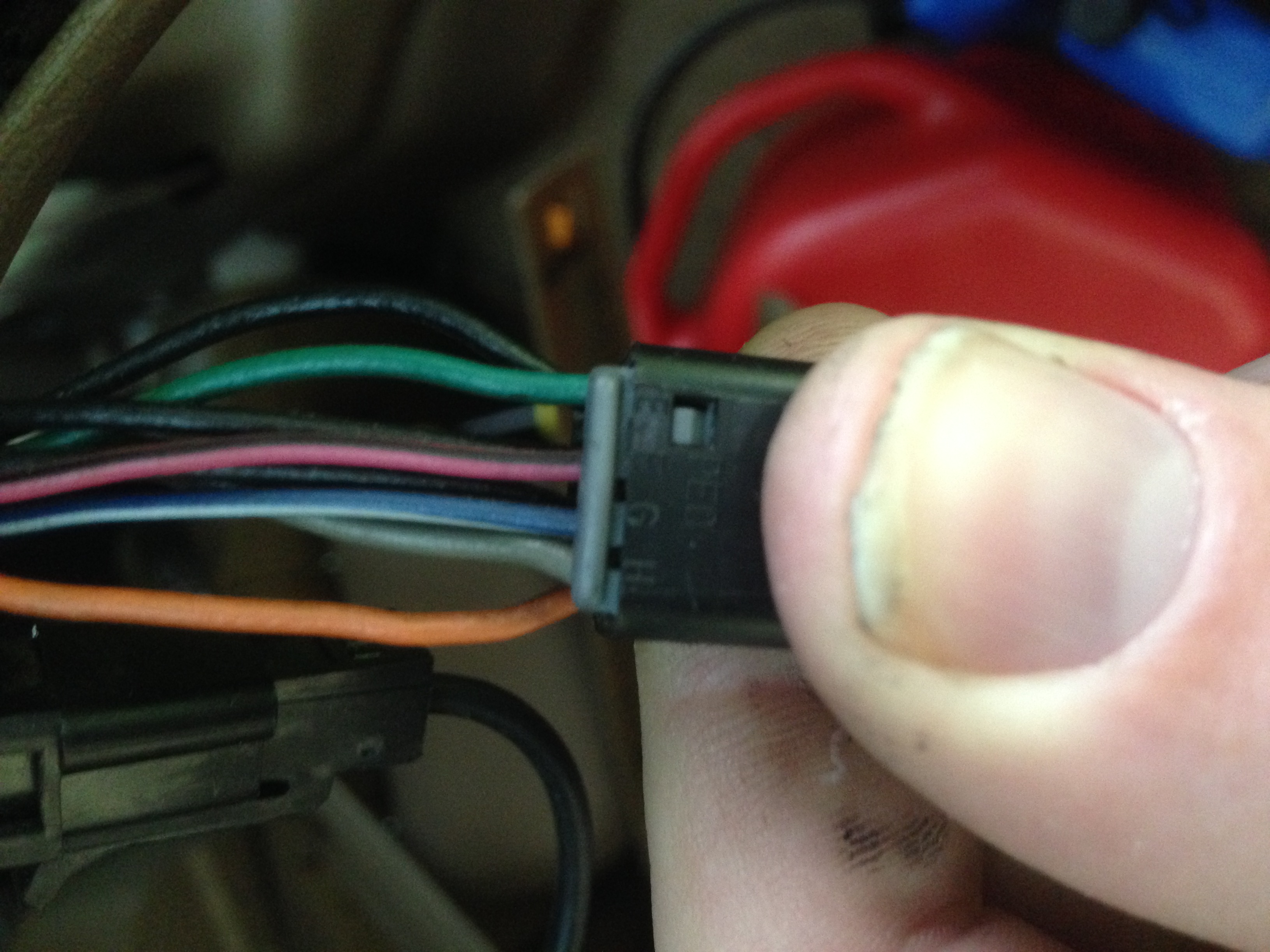

da plugs. smaller is on the vehicle.
